Coil lifter

Used at : Port, Warehouse

Can be attached to any crane. The hydraulic system has less operating shock and faster speed, so you won't feel any work stress. It can also withstand rough operation, easy maintenance, and almost no breakdowns. The arm is equipped with a reflective sensor to detect the hole in the coil. In addition, a limit bar attached to the arm prevents the coil from being pinched too much.
Standard safety features include arm opening prevention and claw detection. Handling coil, operation method, power supply method, etc. We can provide specifications that match the operating environment.

Model Power Features Operation Applicable crane
Horizontal
For warehouse / sliding type
Electro-hydraulic type / Electric type Ideal for work in warehouses with limited lift Wireless / wired Overhead traveling crane
Mobile crane
Hook cranes such as horizontal retractable cranes
Vertical
For quay / Link type
Electro-hydraulic type Ideal for onboard cargo handling with narrow coil loading intervals

Two basic types
to suit your work environment

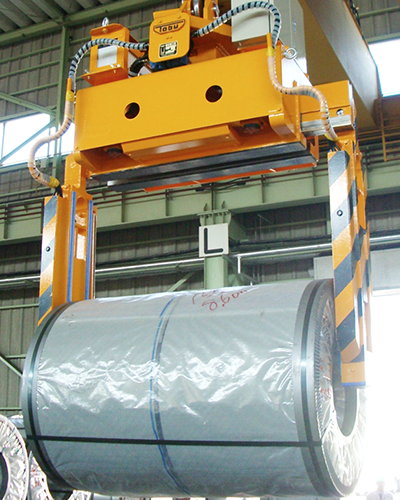

Horizontal (sliding) coil lifter.
Warehouse work type type

Ideal for warehouses with limited lift. The arm slides horizontally, which is designed to keep the overall height down.

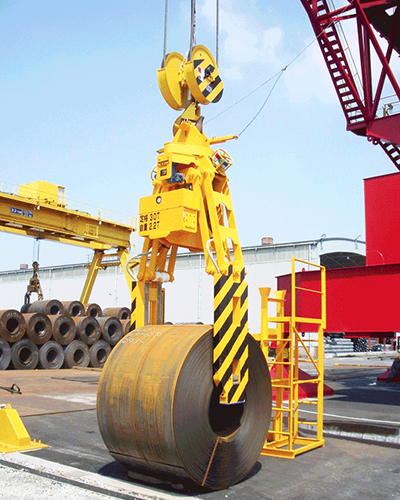

Vertical (link type) coil lifter.
Quay / shipboard work type

Ideal for onboard cargo handling with narrow coil loading intervals. The arm is opened and closed by expanding and contracting the hydraulic cylinder, resulting in a sturdy body structure.

Other structures

Swivel mechanism
It is a system that turns with a hydraulic motor, so the speed is fast,
the start and stop are smooth, there is no shock, and there is no load swing.
Nail undulation type
The claw that hangs the coil is always stored in the thickness of the arm,
and it is a structure that comes out when grasping.
Arms can be inserted between coils arranged at narrow intervals, making effective use of warehouse space.

PDF catalog

Electro-hydraulic
telescopic Hanger

Used at : Port, Warehouse

By expanding and contracting both ends of the hanger, it is possible to lift several long steel materials up to 5 to 20 m.
Expansion and contraction is controlled by the hydraulic unit mounted on the main body, and the lock function enhances safety.
The maximum suspension load is 15 tons, and the suspension points are set to fixed 5, 6, and 8 m and the expansion and contraction parts 10, 12, 14, and 16 m.
Expansion and contraction and unlocking operations can be easily performed wirelessly remotely.
Since one hanger can be used for steel materials of various lengths, it is not necessary to replace the hanger, and efficiency can be improved by speeding up cargo handling work and improving safety.

Hopper

Used at : Port

Some hoppers that handle various types of bulk cargo handling have a volume of about 20 to 40 m³ and are equipped with functions such as mobile and dustproof.

Model Handling
Hanger Steel materials, plates, coils, etc.
Hopper Various loose cargo
